Hydraulic Oil/fluid Filter Machine

Portable Filter Carts Hydro-3000

Quick Petro Are The Most Economical Way To Protect Your Hydrulic System From The Harm That Can Be Caused By Contamination.

Product Overview:

New Hydraulic Fluid Is Not Necessarily Clean Fluid. Most New Fluid (Right Out Of The Drum) Is Unfit For Use Due To High Initial Contamination Levels. Contamination May Be Added To A New Fluid During Processing, Mixing, Handling And Storage. The Bottom Line – Fluid Should Always Be Filtered Before Being Put Into Use. Using A Portable Filter Hydro-3000 Can Be A Very Effective Way To Reach And Maintain Cleanliness Levels. Quick Petro Portable Filter Hydro-3000 Is The Ideal Way To Prefilter And Transfer Fluid Into Reservoirs Or To Clean Up Exisiting Systems.

Hydro-3000 Filter Carts Use Tow High Capacity Filters Element,

The First Stage (Inlet) (25 Micron) Filter Captures Larger Paticles, While The Second Stage (Outlet) (05 Micron) Filter Captures Fine Particles Up To 5 Micron.

Using A Hydro-3000 Portable Filter Cart Is The Most Economicals Way To Protect Your System From The Harm That Can Be Caused By Contamination.

Applications:-

• Filtering New Fluid Before Using.
• Transferring Fluid From Drums Or Storage Tank To System Reservoirs.
• Conditioning Fluid That Is Laredy In Use.
• Complimenting Existing System Filtration.
• Removing Free Particlas From A System.
• For Use With Fluid Such As Hydraulic Minerals, Synthetic, Glycola Basis.
• Grade 22,32,46,68,100,120,220 Types Of Minerals, Synthetic And Glycol Basis Hydrulic Oil Only.

Standard Unit Includes:-

• Top-Accessible Service Cover For Easy Changing Of Elements
• Ready To Use Hose And Wand Assembley Requiring No Additional Hardware.
• Hoses And Elexible For Tight Spots And Are Kink-Resistant,Preventing Pump Cavitation.
• Heavy Duty,Rugged Frame.
• 6 Mtr. Electricals Cord With On/Off Switch.
• Duel,Two Stage Filters For Longer Element Life And Pump Protection
• Industrial Quality Gear Pump Is Dependable And Fearuures Quiet Operation.
• Drip Tray Helps To Keep The Work Area Safe And Clean.
• Filter Element Is One Of This Is S.S.304(25 Micron) And Outher Is S.S316(05 Micron).
• Filter Element Is 100% Washable.
• Two Drain Valve To Remove The Oil From The Hosing.

Features And Benefits:-

• Two Filters Are Better Than One, Crating 2.5 Times The Dirt Holding Capacity, Longer Element
• Life And Element Cost Savings.
• The Heavy Duty Frame Is Rugged, Durable, And Built To Last, Preventing Unnecessary Operate.
• The Models Enabling Use In Low Or High Viscosity Applications
• Hose And Wand Assemblies Are Included, Making Additional Hardware Unnecessary And
• Completely Ready To Use.

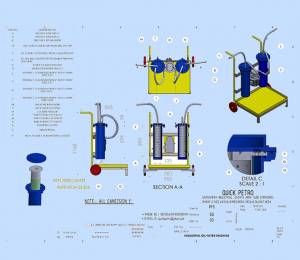

Note: More Detils Of Hydro-3000, Photo And 3d Drwing Under.
