Cutting Oil & Coolant Filter Machine

Nit Cutting Oil & Nit Coolant Online And Off Line Filter Unit ( Water Frees Cutting And Coolant)

Portable Filter Carts C&C-300

Quick Petro are The Most Economical Way to Protect Your Nit cutting Oil and Nit coolant System from the Harm That Can Be Caused by Contamination.

Product Overview:

New Nit cutting &Nit coolant Fluid Is Not Necessarily Clean Fluid. Most New Fluid (Right Out Of The Drum) Is Unfit For Use Due To High Initial Contamination Levels. Contamination May Be Added To A New Fluid During Processing, Mixing, Handling And Storage. The Bottom Line – Fluid Should Always Be Filtered Before Being Put Into Use. Using A Portable Filter C&C-300 Can Be A Very Effective Way To Reach And Maintain Cleanliness Levels. Quick Petro Portable Filter C&C-300 Is the Ideal Way to Pre filter And Transfer Fluid into Reservoirs or to Clean up Existing Systems.

C&C-3000 Filter Carts Use Tow High Capacity Filters Element,

The First Stage (Inlet) (25 Micron) Filter Captures Larger Particles, While The Second Stage (Outlet) (05 Micron) Filter Captures Fine Particles Up To 5 Micron.

Using A C&C-3000 Portable Filter Cart Is The Most Economical Way To Protect Your System From The Harm That Can Be Caused By Contamination.

Applications:

• Filtering New Fluid Before Using.
• Transferring Fluid From Drums Or Storage Tank To System Reservoirs
• Conditioning Fluid That Is already In Use.
• Complimenting Existing System Filtration.
• Removing Free Particles From A System.
• For Use with Fluid Such As Nit cutting &Nit coolant Minerals, Synthetic, Glycol Basis.
• Grade Nit cutting &Nit coolant Types of Minerals, Synthetic and Glycol Basis Hydraulic Oil Only.

Standard Unit Includes:

• Top-Accessible Service Cover For Easy Changing Of Elements.
• Ready To Use Hose And Wand Assembly Requiring No Additional Hardware.
• Hoses And Flexible For Tight Spots And Are Kink-Resistant, Preventing Pump Cavitation.
• Heavy Duty, Rugged Frame.
• 6 Mtr. Electrical Cord With On/Off Switch.
• Duel, Two Stage Filters For Longer Element Life And Pump Protection.
• Industrial Quality Gear Pump Is Dependable And Features Quiet Operation.
• Drip Tray Helps To Keep The Work Area Safe And Clean.
• Filter Element Is One Of This Is S.S.304(25 Micron) And other Is S.S316(05 Micron).
• Filter Element Is 100% Washable.
• Two Drain Valve To Remove The Oil From The Hosing.

Features and Benefits:

• Two Filters Are Better Than One, Crating 2.5 Times The Dirt Holding Capacity, Longer Element Life And Element Cost Savings.
• The Heavy Duty Frame Is Rugged, Durable, and Built To Last, Preventing Unnecessary Operate.
• The Models Enabling Use in Low or High Viscosity Applications.
• Hose And Wand Assemblies Are Included, Making Additional Hardware Unnecessary And Completely Ready To Use.

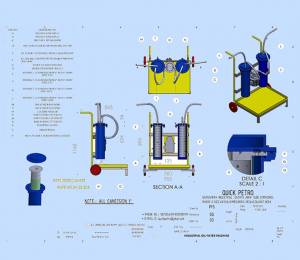

Note: More Details of C&C-300, Photo and 3d Drawing Under.
