Gear Oil Filter Machine

Gear Oil Online And Offline Filter Unit

Portable Filter Carts Gear-220

Quick Petro Are The Most Economical Way To Protect Your Gear Box From The Harm That Can Be Caused By Contamination.

Product Overview:

New Gear Oil Is Not Necessarily Clean Fluid. Most New Gear Oil (Right Out Of The Drum) Is Unfit For Use Due To High Initial Contamination Levels. Contamination May Be Added To New Gear Oil During Processing, Mixing, Handling And Storage. The Bottom Line – Gear Oil Should Always Be Filtered Before Being Put Into Use. Using A Portable Filter Gear-220 Can Be A Very Effective Way To Reach And Maintain Cleanliness Levels. Quick Petro Portable Filter Gear-220 Is The Ideal Way To Prefilter And Transfer Gear Oil Into Reservoirs Or To Clean Up Exisiting Systems.

Gear-220 Filter Carts Use Tow High Capacity Filters Element,

The First Stage (Inlet) (25 Micron) Filter Captures Larger Paticles, While The Second Stage (Outlet) (10 Micron) Filter Captures Fine Particles Up To 10 Micron.

Using A Gear-220 Portable Filter Cart Is The Most Economicals Way To Protect Your Gear Box And Gear From The Harm That Can Be Caused By Contamination.

Applications:

• Filtering New Gear Oil Before Using.
• Transferring Gear Oil From Drums Or Storage Tank To Gear Box Reservoirs.
• Conditioning Fluid That Is Alredy In Use.
• Complimenting Existing Gear Oil Filtration.
• Removing Free Particlas From A Gaer Box.For Use With Gear Oil Such As Minerals, Synthetic,
• Glycola Basis.
• Grade 90,120,220 Types Of Minerals, Synthetic And Glycol Basis Gear Oil Only.

Standard Unit Includes:

• Top-Accessible Service Cover For Easy Changing Of Elements.
• Ready To Use Hose And Wand Assembley Requiring No Additional Hardware.
• Hoses And Elexible For Tight Spots And Are Kink-Resistant,Preventing Pump Cavitation.
• Heavy Duty,Rugged Frame.
• 6 Mtr. Electricals Cord With On/Off Switch.
• Duel,Two Stage Filters For Longer Element Life And Pump Protection.
• Industrial Quality Gear Pump Is Dependable And Fearuures Quiet Operation.
• Drip Tray Helps To Keep The Work Area Safe And Clean.
• Filter Element Is One Of This Is S.S.304(25 Micron) And Outher Is S.S316(10 Micron).
• Filter Element Is 100% Washable.
• Two Drain Valve To Remove The Oil From The Hosing.

Features And Benefits:-

• Two Filters Are Better Than One, Crating 2.5 Times The Dirt Holding Capacity, Longer Element
• Life And Element Cost Savings.
• The Heavy Duty Frame Is Rugged, Durable, And Built To Last, Preventing Unnecessary Operate.
• This Models Enabling Use In Low Or High Viscosity Applications.
• Hose And Wand Assmblies Are Included, Making Additional Hardware Unnecessary And
• Completely Ready To Use.

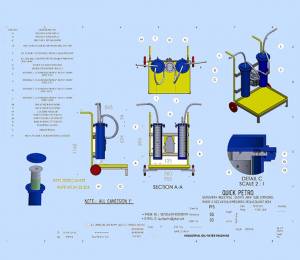

Note: More Details Of Gear-220, Photo And 3d Drwing Under.
